| Brand Name : | GL |
| Certification : | CE |
| Model Number : | IV-T8001 |
| Delivery Time : | 5-30 days upon order quantity |
| Payment Terms : | L/C,T/T, Western Union, Cash |
| Supply Ability : | 30000pcs |
Item NO. | IV-T8001-L600-9W | IV-T8001-L900-14W | IV-T8001-L1200-18W | IV-T8001-L1500-24W |
Tube Length | 600mm (2feet) | 900mm (3feet) | 1200mm (4feet) | 1500mm (5feet) |
Power | 9W | 14W | 18W | 24W |
LED Source | 0.2W SMD2835 | 0.2W SMD2835 | 0.2W SMD2835 | 0.2W SMD2835 |
LED Quantity | 48pcs | 72pcs | 96pcs | 120pcs |
Voltage | AC85~265V/50~60Hz | AC85~265V/50~60Hz | AC85~265V/50~60Hz | AC85~265V/50~60Hz |
Luminous Flux | 850LM±5% | 1150LM±5% | 1650LM±5% | 2100LM±5% |
Color Temperature | 6000-6500K 4000-4500K 2700-3200K | 6000-6500K 4000-4500K 2700-3200K | 6000-6500K 4000-4500K 2700-3200K | 6000-6500K 4000-4500K 2700-3200K |
Luminous Efficacy | 85LM/W | 85LM/W | 85LM/W | 85LM/W |
Color Rendering Index | ≥82 | ≥82 | ≥82 | ≥82 |
Life-span | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours |
Body Materials | 1/2Alumiunm+1/2PC cover | 1/2Aluminum +1/2PC cover | 1/2Aluminum +1/2PC cover | 1/2Aluminum +1/2PC cover |
Color | White | White | White | White |
Size | ￠26mm*L 588mm | ￠26mm*L 898mm | ￠26mm*L 1198mm | ￠26mm*L 1498mm |
IP Grade | IP40 | IP40 | IP40 | IP40 |
Working Temperature | -20~40 'C | -20~40 'C | -20~40 'C | -20~40 'C |
PF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
Flux chart:

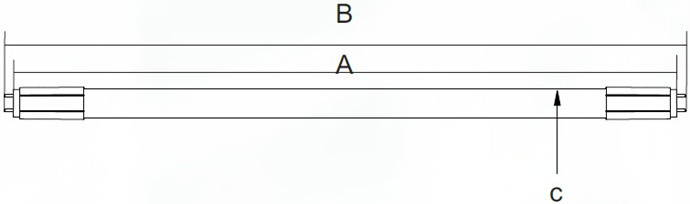

Dimension:
Dimension | A | B | C |
(mm) | (mm) | (mm) | |
600mm(2feet) | 588 | 602 | 26 |
900mm(3feet) | 898 | 912 | 26 |
1200mm(4feet) | 1198 | 1212 | 26 |
1500mm(5feet) | 1498 | 1512 | 26 |
|
|
